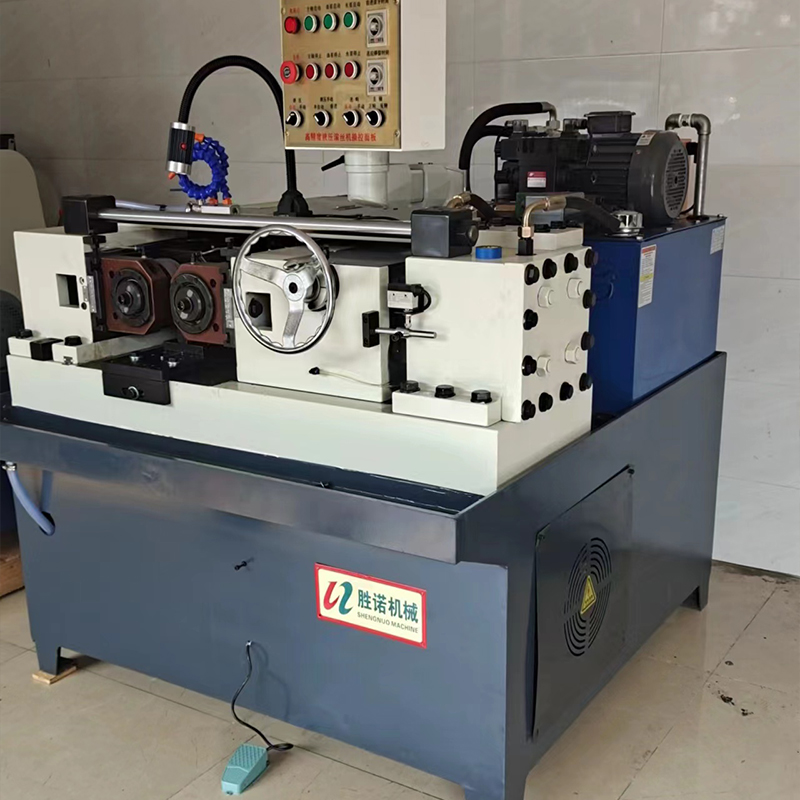

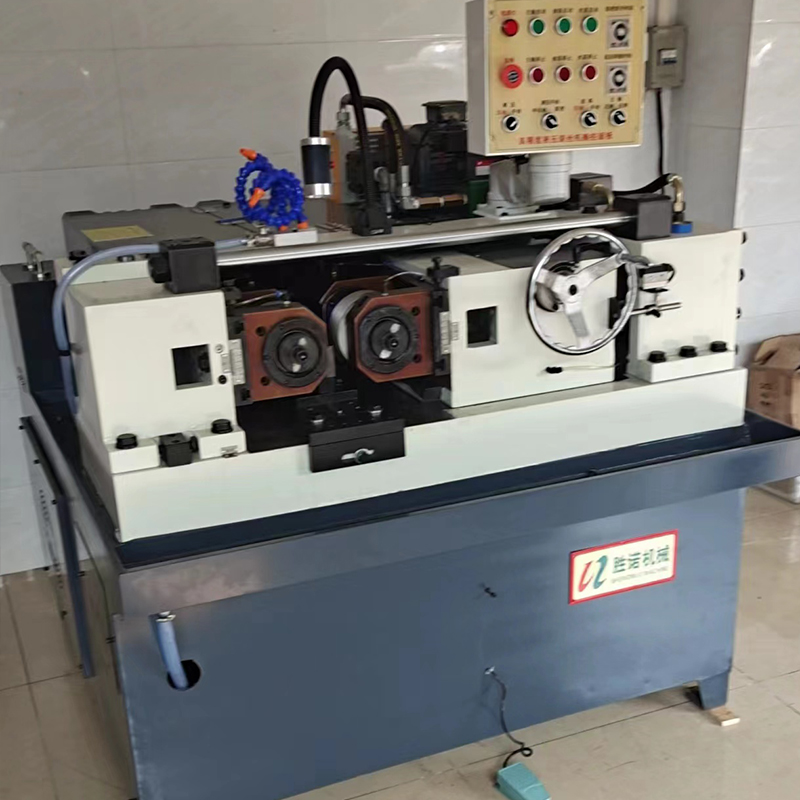

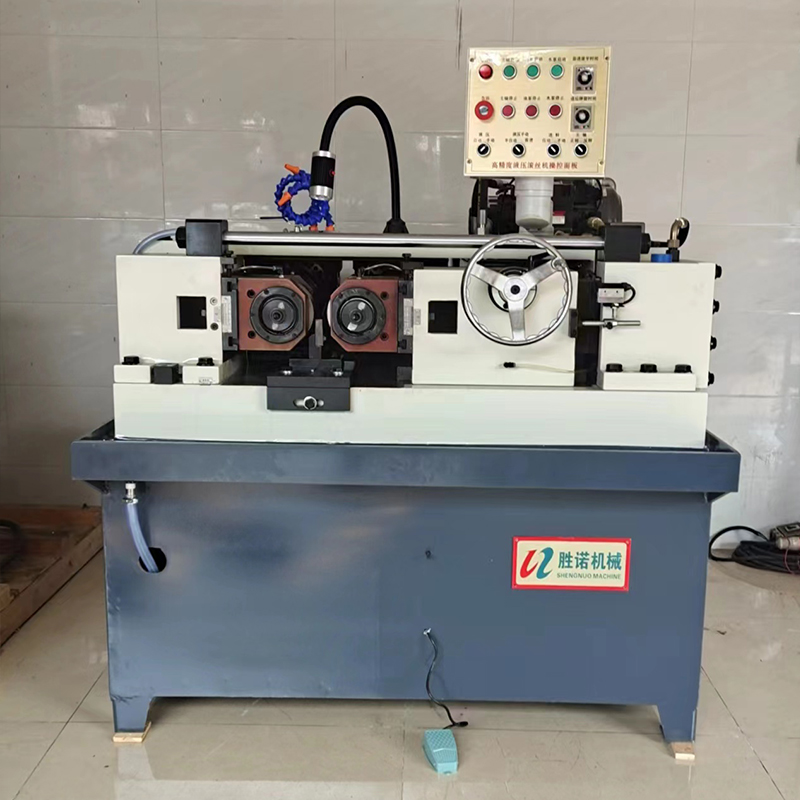

SN-12.5T Two axis hydraulic wire rolling machine
Brand Name:
SUNNO
Model No.:
SN-12.5T
Customized support:
OEM
1. Rolling through fixed dual-use: the machine is equipped with a micro-dynamic switch, can adjust the rolling time and workpiece rolling length.
2. Strong oil pressure: the skateboard (right cone) is driven by oil pressure, accurate positioning, strong force without distortion.
3. Strong structure: The fuselage is made of FC-25 high-strength cast iron, which is durable after tempering and tempering.
4. Stable advance and retreat motion: The advance and retreat skateboard designed by square track can be accurately positioned in the pressure rolling teeth of the skateboard after the high-frequency surface hardening and then fine grinding, which will not jump loose and is not easy to wear.
Details
Specifications:

Energy efficiency \ Type

SN-6.3T

SN-12.5T

SN-20T

Outer diameter of rolled screws

Ø2~ Ø16 mm

Ø15~ Ø30 mm

Ø6~ Ø40 mm

Pitch range

0.5p to 2.5p

0.5p to 3.5p

0.5p to 5p

Rolling length fixed, rolling through (unlimited length) dual useWheel rpm

30 rpm

20*40*60 rpm

20*40*60 rpm

Roller outer diameter

160mm

170mm

190mm

Roller bore

54mm

54mm

75mm

Roller thickness

60mm

120mm

150mm

Maximum distance between roller shafts

175 mm

240 mm

250 mm

Minimum distance between roller shafts

120 mm

120 mm

170 mm

The distance between bed surface and roller shaft center is

125 mm

125 mm

160 mm

Rolling capacity

4 ~ 20

4 ~ 20

4 ~ 20

Main engine motor

4HP(3KW)

5 HP(3.75KW)

10 HP(7.5KW)

Hydraulic motor

2 HP(1.5KW)

3 HP(2.2KW)

5 HP(3.75KW)

Feed pressure

6.3 TONS

12.5 TONS

20TONS

Weight (approx.)

1000 kgs

1600 kgs

2600 kgs

Gross weight (approx.)

1200 kgs

1800 kgs

2800 kgs

Mechanical body

1200 x 1000 x 140 mm

1345 x 1250 x 1515 mm

1700 x 1600 x 1515 mm

Packing size

1250 x 1050 x 1450 mm

1385 x 1300 x 1600 mm

1750 x 1650 x 1600 mm
