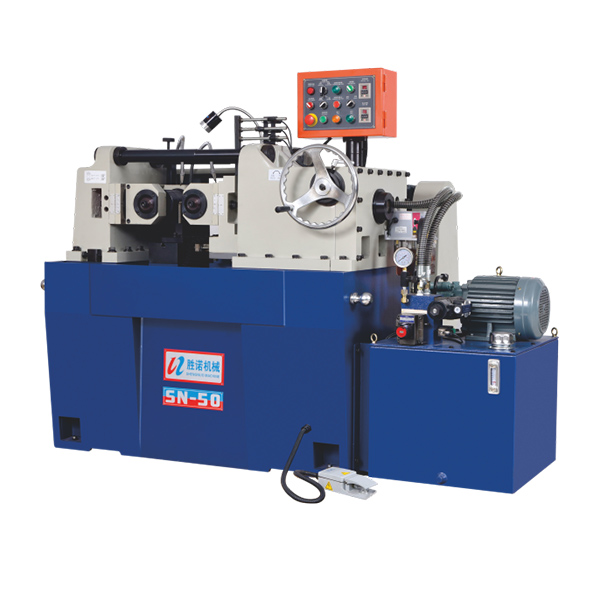

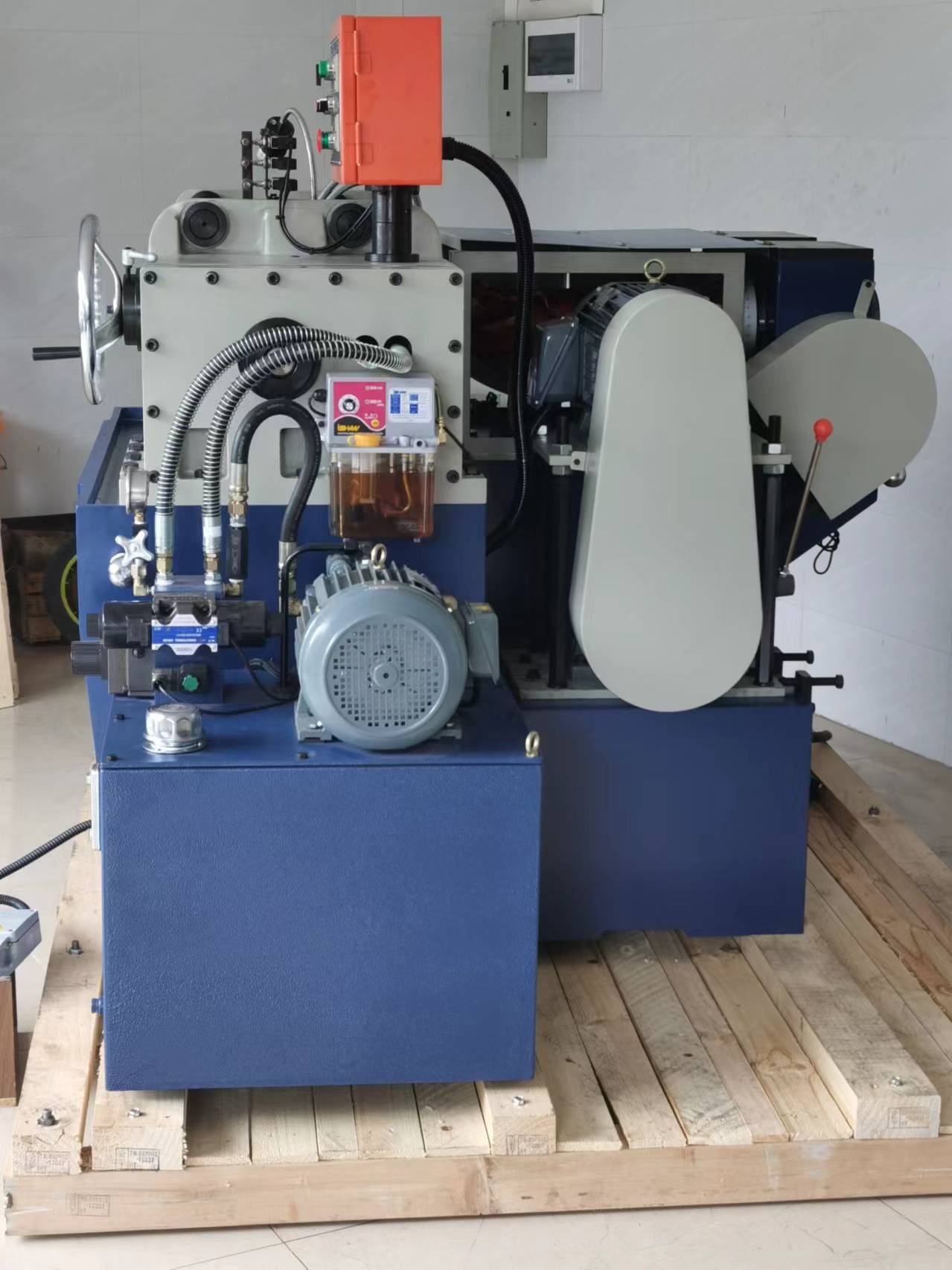

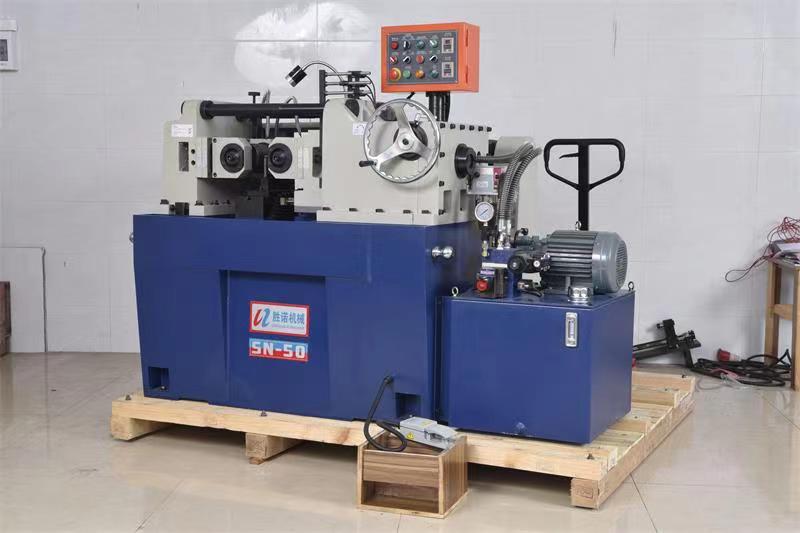

SN-50 Thread Rolling Machine

Brand Name:
SUNNO
Model No.:
SN-50
Customized support:
OEM

This machine is a high precision wire rolling machine, especially suitable for the processing of long length screws, high precision fasteners, ohmic screws, ball screws and machinery, hardware tools, steam engine parts or iron pipe threads.

Details
1. Strong structure: The fuselage is made of FC-25 high-strength ductile cast iron, and has been conditioned and heat-treated for durability.
2. Stable advance and retreat motion: the advance and retreat slide of square track design is cast with the body as a whole, and will not jump during the rolling pressure operation after grinding.
Loose, worn.

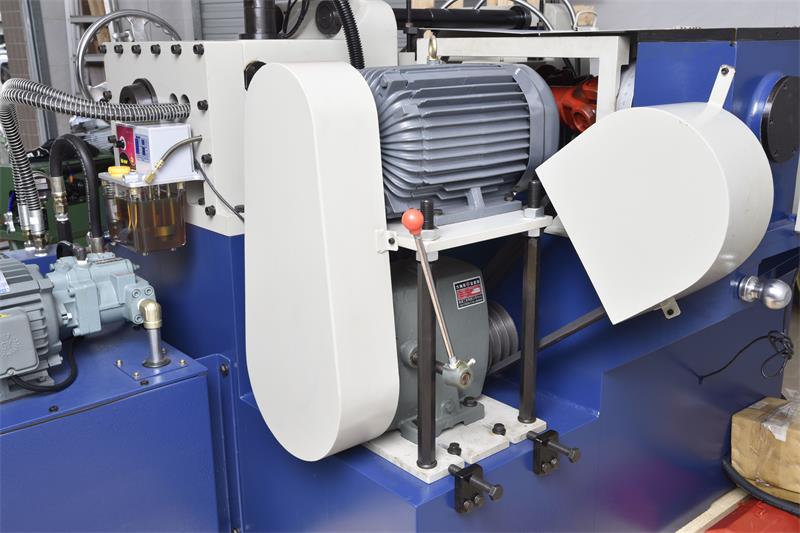

3. Strong strength: hydraulic drive, a wide range of processing energy rates.
4 Fixed, rolling through dual use: equipped with time limit control meter, can adjust the processing time.
5.Full transmission: The worm after heat treatment is ground by thread, and the phosphor bronze worm wheel is more closely combined, and the transmission is smooth.
6. Both ends of the thimble support frame can be added according to the type of work, and the thread can be rolled to integrate the concentricity
7. Especially suitable for the processing of long gauge screws, ohm screws, ball screws and machinery, hardware tools, steam engine parts or iron pipe threads.

Specifications:

Energy efficiency \ Type

SN-50

Outer diameter of rolled screws

Ø6 ~ 80 Ømm

Pitch range

1.0p ~ 6.0p

Rolling length fixed, rolling through (unlimited length) dual use

10 x 20 x 28 x 38 rpm

Roller outer diameter

180 mm

Roller bore

54 mm

Roller thickness

35 ~ 150 mm

Maximum distance between roller shafts

230 mm

Minimum distance between roller shafts

170 mm

The distance between bed surface and roller shaft center is

150 mm

Rolling capacity

4 ~ 30

Main engine motor

10 HP

Hydraulic motor

5 HP

Feed pressure

35 TONS

Weight (approx.)

2700 kgs

Gross weight (approx.)

3160 kgs

Mechanical body

1800 x 1500 x 1300 mm

Packing size

1880 x 1545 x 1500 mm


Especially suitable for processing long gauge screws, ohm screws, ball screws and machinery, hardware tools, trapezoidal screw, worm, high precision fasteners, motor parts or iron pipe threads.
